| Model | HS-N08-P | |||||
| System resources | ||||||
| Video compression standard | H.265 | |||||
| operating system | embedded LINUX operating system | |||||
| Output mode | IPC/adaptive | |||||
| Video and audio input | ||||||
| General video input | Route 10 8.0MP | |||||
| Video and audio output | ||||||
| Video output | One HDMI channel and one VGA channel can output images at the same time | |||||
| Audio output | One 3.5mm interface, which supports HDMI audio output. | |||||
| Video and audio codec parameters | ||||||
| video resolution | 10*8M | |||||
| synchronous playback | 4K(1)/5M(1 1)/4M(2 1)/3M(2 2)/1080P(4 1) | |||||
| video management | ||||||
| video/capture mode | Manual video recording, timing video recording, motion detection video recording, alarm video recording | |||||
| playback mode | Point-in-time search, calendar search, event search, channel search, and face search | |||||
| Backup mode | Network backup, USB mobile hard disk, USB burn, SATA burn | |||||
| hard drive | ||||||
| One SATA API | ||||||
| Maximum capacity | Each interface supports a hard disk with a capacity of up to 14TB. | |||||
| eSATA | ||||||
| External Interface | ||||||
| Alarm interface | ||||||
| Cloud Platform Interface | ||||||
| Network interface | One RJ45(10M/100M adaptive Ethernet port) | |||||

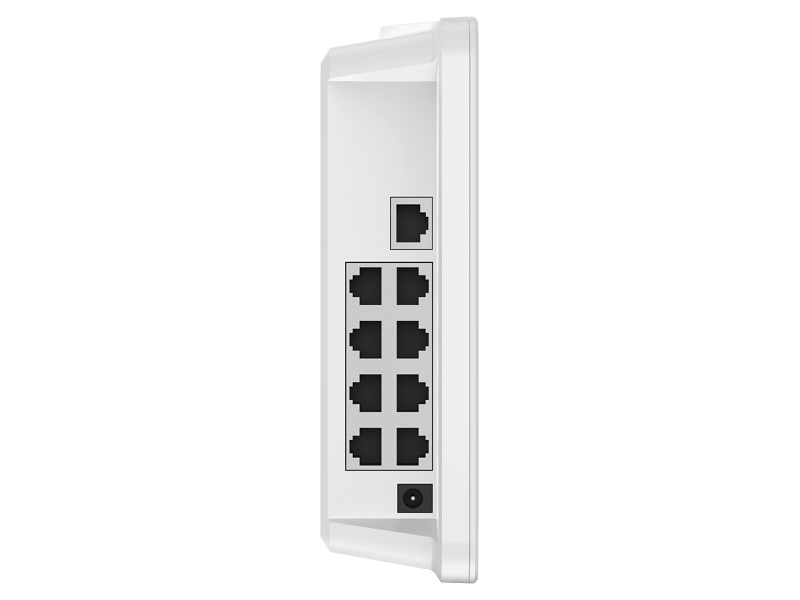

| POE port | 8 RJ45(10M/100M adaptive Ethernet ports) | |||||
| USB interface | Two USB2.0 | |||||
| network management | ||||||
| network protocol | ONVIF,IPv6, UPnP (plug and play), NTP (network timing), SADP (automatic IP address search), PPPoE (dial-up Internet access), DHCP (automatic IP address acquisition), etc. | |||||
| display | ||||||
| Dimensions | 11.6inch TFT EDP screen | |||||
| resolution | 1366*768 | |||||
| Other | ||||||
| power supply | DC 52V2A | |||||
| power consumption (excluding hard disk) | ≤ 18W | |||||
| operating temperature | -10 ℃-+55 ℃ | |||||
| working humidity | 10%-90% | |||||
| size | 288mm (length) × 182mm (width) × 50mm (height) | |||||
| weight (excluding hard disk) | ≤ 0.75Kg | |||||
HS-N08-P
Eight-channel POE NVR

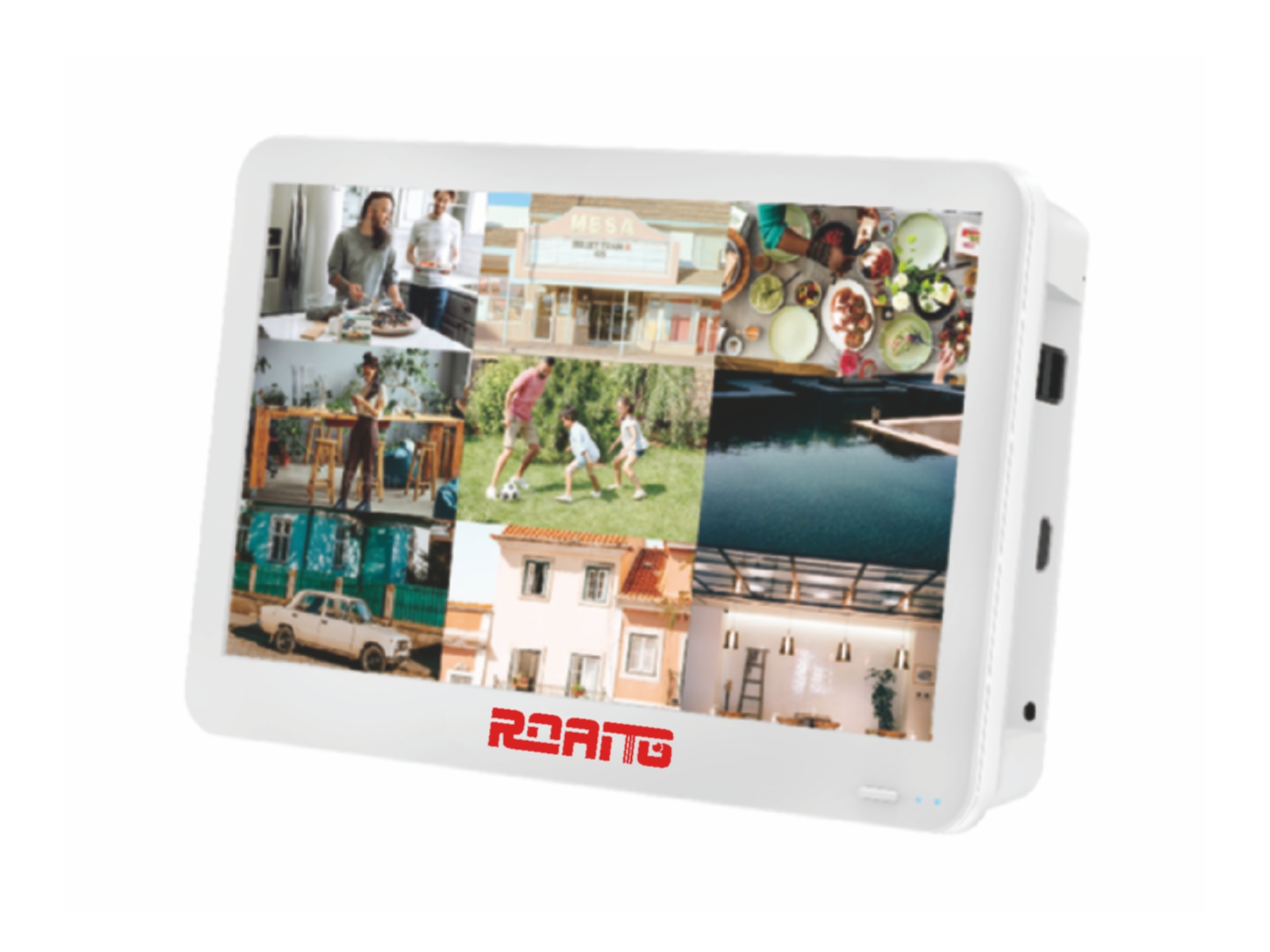

8MP(4K) HD POE 8-way All-in-One with 11.6-inch Display
Support H.265 intelligent coding technology
Support 8MP HD network video preview, storage and playback
Support PC client centralized management, mobile phone remote monitoring, support P2P Internet access function, one-click configuration video recording
Compatible with third-party network cameras conforming to standard ONVIF RTSP protocol
Support VGA/HDMI synchronous output, HDMI maximum resolution 4K
Support 250 m lon
8MP(4K) HD POE 8-way All-in-One with 11.6-inch Display
Support H.265 intelligent coding technology
Support 8MP HD network video preview, storage and playback
Support PC client centralized management, mobile phone remote monitoring, support P2P Internet access function, one-click configuration video recording
Compatible with third-party network cameras conforming to standard ONVIF RTSP protocol
Support VGA/HDMI synchronous output, HDMI maximum resolution 4K
Support 250 m lon
