Product Model HS-QS1-20
system structure Dual Core 32-Bit DSP(NT98566), Pure Hard Compression, Watchdog
sensor 2 2,000,001/3 "SC2336 High Performance CMOS Sensors
Minimum illuminance color: 0.01Lux @(F1.2,AGC ON); 0 Lux with IR
black and white: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Video processing H.265AI encoding, dual code stream, AVI format; the code stream is adjustable from 0.1M to 10Mpbs; the frame rate is adjustable from 1 to 30 frames per second
image output main code stream: 1920*1080 @ 12fps; Sub-code stream: 800*448 @ 12fps
shutter 1/50(1/60) seconds to 1/10000 seconds
lens 3,000,002. 8MM 12MM
night vision 6 intelligent dual-light lamps, night vision: 30M
light mode Full color, black and white, and smart alert
noise reduction Supports 2D/3D noise reduction
wide dynamics Supports wide dynamics
Yuntai motor built-in motor control
rotation angle 355, vertical: 90
audio voice intercom voice alert
wired network 1 RJ45 Ethernet interface, 10/100M adaptive
wireless network WIFI(IEEE 802.11b/g/n)2.4GHz
Reset key interface Supports one-click reset
Storage method A local TFC card with a maximum of 128GB; cloud storage
reliability surface lightning protection, in line with national and international standards; 7*24 hours 65 ℃ high temperature test is stable and reliable (including complete machine test)
Intelligent Analysis supports humanoid detection and other intelligent functions.
Business functions Supports remote monitoring of mobile phone clients, push messages after humanoid detection and alarm, and MJPEG capture
ONVIF support
mobile phone monitoring supports mobile phone monitoring (iOS,Android)
power supply DC12V (standard without power supply)

HS-QS1-20

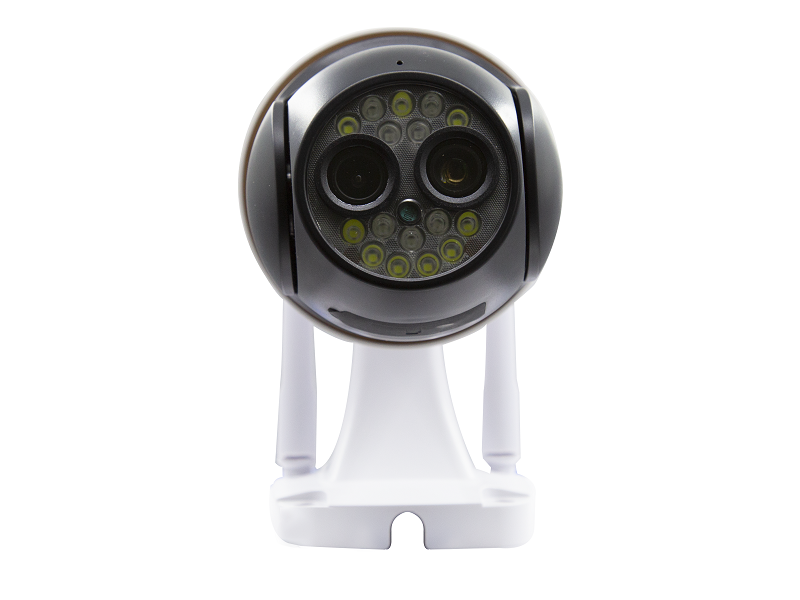

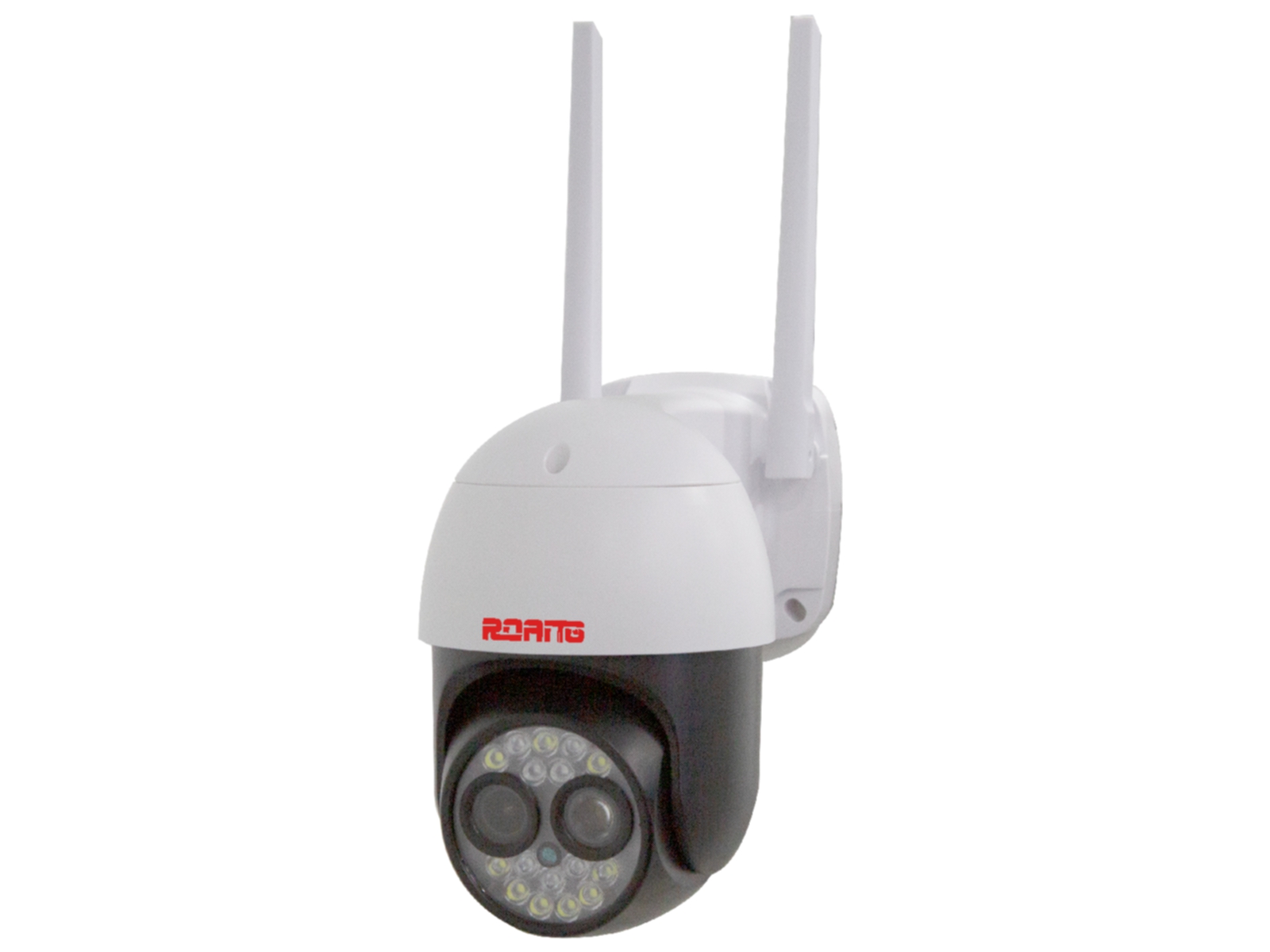

4 million pixel binocular wireless intelligent ball machine
4 million resolution, clear and delicate image
Support dual cameras, 2.8MM and 12MM 8x hybrid zoom, dual picture preview, picture-in-picture binocular
Support intelligent dual-light alert, night vision: 30M
Supports wired and wireless network connections
Support human form, intelligence (mixing line, area care, etc.)
Support 2D/3D noise reduction, digital wide dynamic
Advanced H.265AI video compression technology, ultra-low code rate, h
